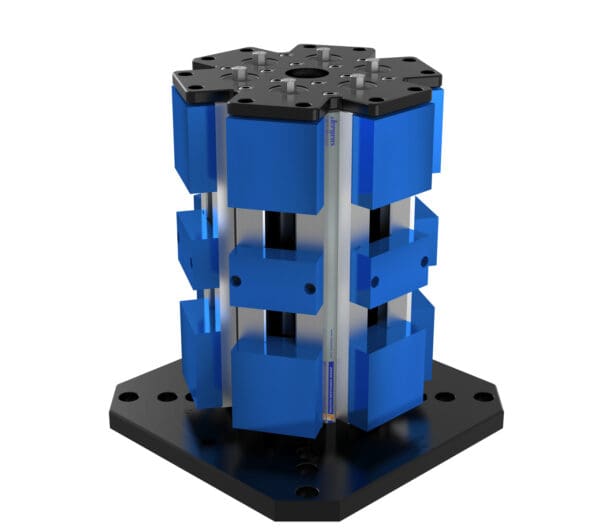

12 Station Production Vise Columns
Jergens 12 Station Production Vise Columns provide (12) stations to maximize the number of parts per load. Available with bases to fit directly onto your machine table or to a Ball Lock® Subplate.
Features, Benefits, & Product Specifications:
- Reduce part processing costs by machining (3) sides of (12) parts
- Increase unattended machine time
- Improve part throughput
- One-piece column with hardened stainless steel guideways
- Full jaw travel permits clamping a larger variety of parts
- Custom mounting patterns & base sizes are available upon request
Part Number
Vise Size
Ball Lock Mounting Pattern
Weight (lbs)
Max Jaw Opening A (In)
Fixed Jaw Width C (In)
Moveable Jaw Length D (In)
Base To Center Of Fixed Jaw E In
Overall Width H (In)
Jaw Width J (In)
Outside Rail to Rail K (In)
Base Plate Thickness N (In)
Overall Height P (In)
Top Plate Thickness R (In)
Center to Face S (In)
Base Length and Width (In)
Max Jaw Opening B (In)
Compatibility
Price
