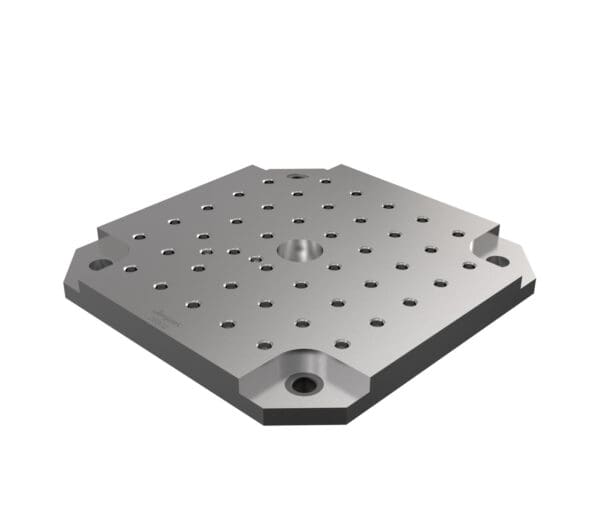

Ball Lock® 16×16 QLS Fixture Plate
Jergens Quick Locating System (QLS) Bushings are hardened and ground for accurate and repeatable setups. Use in combination with 12mm QLS dowel pins or shoulder screws.
Features, Benefits, & Product Specifications:
- Material: FreMax™ 15 Steel or Equivalent
- Thickness: 1.378″ ±0.002″
- Parallel within 0.001″
- Mounts to subplates using Ball Lock® Shank Part No. 49601
Part Number
Weight (lbs)
Fixture Plate Thickness (In)
Plate Size (In)
QLS Grid
Price
