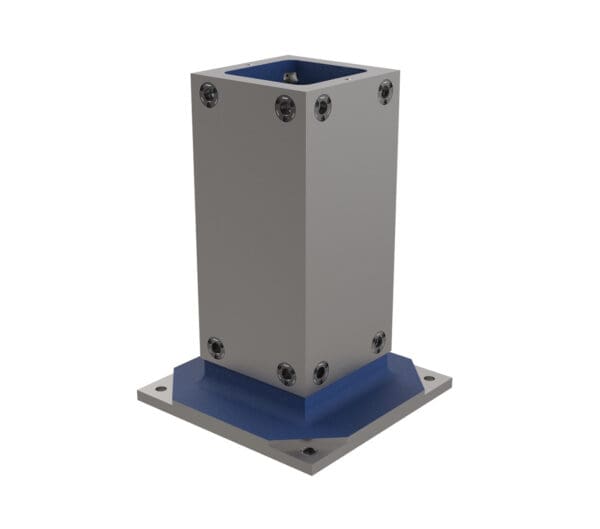

Ball Lock® 4-Sided Tooling Columns
Jergens Ball Lock® Tooling Columns provide an accurate fixturing base for CNC machining centers.
Features, Benefits, & Product Specifications:
- Material: Class 40 Cast Iron (also available in Aluminum)
- Ball Lock® Receiver Bushings & Liners installed
- Perpendicularity is 0.001″ per foot (0.025mm per 250mm)
- Order Hoist Ring (Part No. 23411) for lifting & handling
Custom Sizes Available with or without Ball Lock®
We are able to quote you on your special requirement with or without the Ball Lock® Mounting System. Call 1 (877) 426-2504 for design specification information.
Part Number
Pallet Size (mm)
Weight (lbs)
A (In)
B (In)
C (In)
D (In)
E (In)
F (In)
G (In)
H (In)
I (In)
J (In)
K (In)
L (In)
M (In)
N (In)
O (mm)
P (mm)
Price
