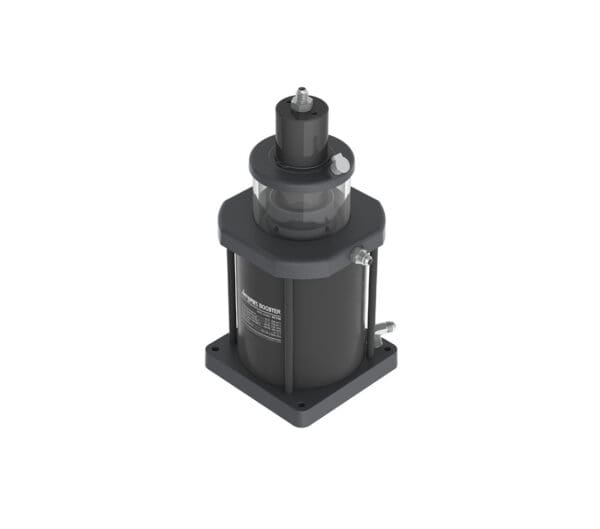

Boosters
Jergens Boosters are ideal for permanent fixtures, special
machines, or O.E.M. applications. The volume of oil available to
operate the work circuit depends upon the high-pressure capacity of
the booster. Work circuits using standard boosters require manual
bleeding.
Features, Benefits, & Product
Specifications:
- Easy to view reservoir
- 15:1 and 30:1 boost ratios available
- May be mounted vertically or horizontally
Dimensions
| Part Number | Price | Repair Kit Part Number | Minimum Input (psi) | Maximum Input (psi) | Boost Ratio | Maximum Output (psi) | Weight (lbs) | Reservoir Capacity (cu. in.) | High Pressure Volume (cu. in.) | Height (In) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 61709 | £723.52 | 62109 | 20 | 125 | 15:1 | 1875 | 20 | 15 | 4 | 10 7/16 | £723.52Add to basket |
| 61710 | £723.52 | 62109 | 20 | 125 | 15:1 | 1875 | 24 | 15 | 7 1/2 | 14 7/16 | £723.52Add to basket |
| 61711 | £723.52 | 62110 | 20 | 125 | 30:1 | 3750 | 22 | 18 | 3 3/4 | 14 7/16 | £723.52Add to basket |
