Forged Adjustable Clamps

Jergens, Inc

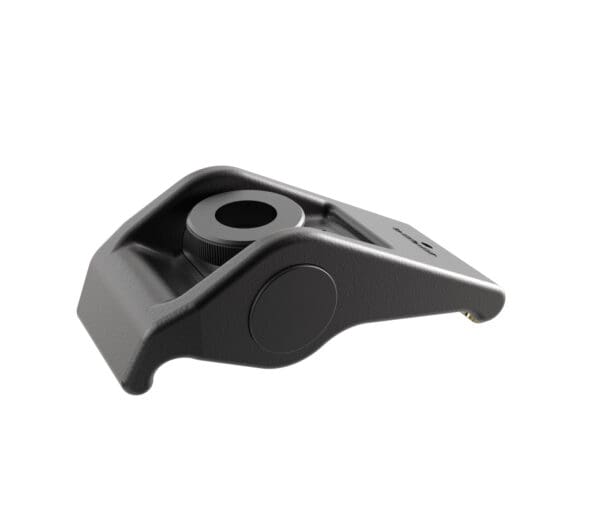

Jergens Forged Adjustable Clamps automatically compensate for clamping height changes within their clamping ranges. These clamps feature high-quality forging providing superior clamping strength. The swivel bushing is permanently mounted in the clamp, which alleviates lost or missing parts. The standard brass heel plate protects the machine table.


Features, Benefits, & Product Specifications:
  • Material: 1137 Forged Steel, Heat Treated
  • Finish: Black Oxide
  • One piece construction
  • Versatile clamping height
  • Made in the U.S.A.
  • Accessories available (see Related Products below)

Note(s):
  • Holding forces are based on using our heat-treated Alloy Steel T-slot Bolts, Studs, T-nuts, and Flange Nuts in order at the recommended torque.

Dimensions

Part NumberPriceBolt SizeMaximum Torque (ft/lbs)Weight (lbs)L (In)W (In)Maximum Holding Force (lbs)X (In)T (In)Clamping Range (In)Weight (kgs)L (mm)W (mm)T (mm)X (mm)Clamping Range (mm)
19101£46.481/2, M12100, 901.14 1/41 3/42800, 68002 1/21 1/20 - 20.61084438630 - 50

£46.48Add to basketLoading Done

19102£57.935/8, M16180, 2601.75210600, 525031 5/80 - 2 3/80.921255041750 - 60

£57.93Add to basketLoading Done

19103£87.933/4, M20300, 50036 1/42 1/216000, 82503 3/41 3/40 - 2 3/41.61596344950 - 70

£87.93Add to basketLoading Done

19104£130.237/8 - 1, M24500-760, 8705.37311850, 21800-286004 1/42 3/80 - 3 1/22.917575601080 - 89

£130.23Add to basketLoading Done
