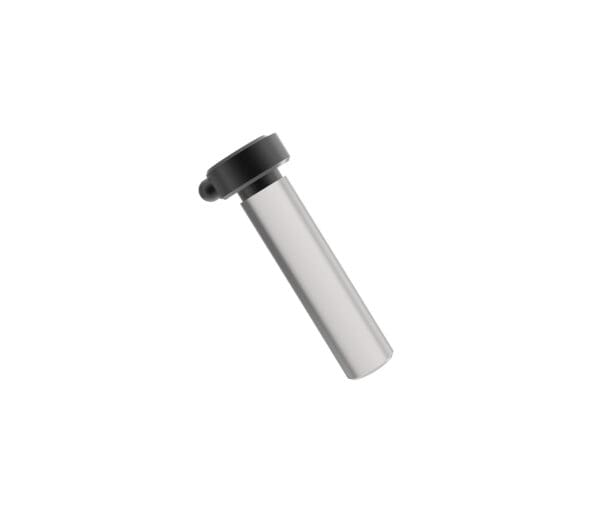

Kwik-Strip® Stripper Bolts

Jergens, Inc
Jergens Kwik-Strip® Stripper Bolts provide an inexpensive, simple method of stripper plate removal. The stripper can be removed with the die still mounted in the press.

Features, Benefits, & Product Specifications:
  • Material: Alloy Steel
  • Heat Treat: 32-36 RC

Selection of Sizes:
Size selections should be based on the thread size. For example, if your application calls for a 1/2″ stripper bolt (with a 3/8″ thread), use a 5/8″ Kwik-Strip® Stripper Bolt (with a 3/8″ thread). Kwik-Strip® Stripper Bolts may be shortened by 1/4″ and still have sufficient thread depth for the cap screw.


Dimensions

Part NumberPriceThread SizeWeight (lbs)A (In)B (In)C (In)D (In)E (In)F (In)G (In)
46601£21.335/16-180.141/225/160.4095/643/41

£21.33Add to basketLoading Done

46602£21.915/16-180.171/22 1/25/160.40957/643/41

£21.91Add to basketLoading Done

46603£34.025/16-180.21/235/160.40957/643/41

£34.02Add to basketLoading Done

46604£23.655/16-180.231/23 1/25/160.40957/643/41

£23.65Add to basketLoading Done

46605£25.715/16-180.261/245/160.40957/643/41

£25.71Add to basketLoading Done

46606£26.215/16-180.291/24 1/25/160.40957/643/41

£26.21Add to basketLoading Done

46607£34.025/16-180.321/255/160.40957/643/41

£34.02Add to basketLoading Done

46608£20.613/8-160.185/823/80.4721 1/647/81 1/8

£20.61Add to basketLoading Done

46609£21.913/8-160.235/82 1/23/80.4721 1/647/81 1/8

£21.91Add to basketLoading Done

46610£23.653/8-160.275/833/80.4721 1/647/81 1/8

£23.65Add to basketLoading Done

46611£23.653/8-160.325/83 1/23/80.4721 1/647/81 1/8

£23.65Add to basketLoading Done

46612£25.443/8-160.365/843/80.4721 1/647/81 1/8

£25.44Add to basketLoading Done

46613£26.213/8-160.415/84 1/23/80.4721 1/647/81 1/8

£26.21Add to basketLoading Done

46614£26.213/8-160.455/853/80.4721 1/647/81 1/8

£26.21Add to basketLoading Done

46615£21.331/2-130.263/421/20.5341 9/6411 1/4

£21.33Add to basketLoading Done

46616£21.911/2-130.333/42 1/21/20.5341 9/6411 1/4

£21.91Add to basketLoading Done

46617£23.651/2-130.393/431/20.5341 9/6411 1/4

£23.65Add to basketLoading Done

46618£23.651/2-130.463/43 1/21/20.5341 9/6411 1/4

£23.65Add to basketLoading Done

46619£25.441/2-130.523/441/20.5341 9/6411 1/4

£25.44Add to basketLoading Done

46620£30.631/2-130.593/441/20.5341 9/6411 1/4

£30.63Add to basketLoading Done

46621£31.901/2-130.653/451/20.5341 9/6411 1/4

£31.90Add to basketLoading Done
