Micro™ Low Profile Clamps

Jergens, Inc

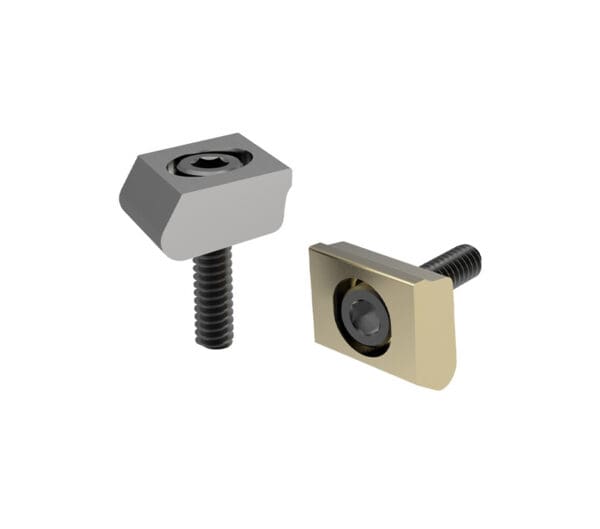

Jergens Micro™ Low Profile Clamps can grip low on a workpiece, have extraordinary horizontal and vertical holding force, and can be mounted below the fixture plate surface.

Features, Benefits, & Product Specifications:
  • Materials: Available in Tool Steel and Brass
  • Styles: Available in Knife Edge and Blunt Edge styles
  • Extraordinary horizontal and vertical force
  • Extremely low profile – as low as 0.075″ (1.90mm)
  • Very small footprint
  • High resistance to pull-out
  • Choose among three sizes with an inch or metric screws

Note(s):
  • The “D” dimension is the combination of horizontal and vertical force.


Dimensions

Part NumberPriceMaterialClamp TypeScrew SizeClamps per PackageA (In)B (In)C (In)D (In)E (In)Torque (ft/lbs)Max Holding Force (lbs)Clamp Width (In)Total Throw (In)
13201£84.88Tool SteelKnife Edge4-4080.150.140.3750.0750.261.36500.3750.0075

£84.88Add to basketLoading Done

13202£90.31Tool SteelBlunt Edge4-4080.150.140.3750.0750.261.36500.3750.0075

£90.31Add to basketLoading Done

13203£90.31BrassBlunt Edge4-4080.150.140.3750.0750.220.410.410.3750.0075

£90.31Add to basketLoading Done

13211£95.93Tool SteelKnife Edge8-3280.20.1870.50.10.393.715000.50.016

£95.93Add to basketLoading Done

13212£95.93Tool SteelBlunt Edge8-3280.20.1870.50.10.393.715000.50.016

£95.93Add to basketLoading Done

13213£95.93BrassBlunt Edge8-3280.20.1870.50.10.3424000.50.016

£95.93Add to basketLoading Done

13221£97.63Tool SteelKnife Edge1/4-2060.30.280.750.150.5714.536000.750.024

£97.63Add to basketLoading Done

13222£92.95Tool SteelBlunt Edge1/4-2060.30.280.750.150.5714.536000.750.024

£92.95Add to basketLoading Done

13223£92.95BrassBlunt Edge1/4-2060.30.280.750.150.444.19500.750.024

£92.95Add to basketLoading Done

13224£100.44Tool SteelKnife Edge3/8-16 x 1"40.40.4510.250.71306,00010.05

£100.44Add to basketLoading Done

13225£100.44Tool SteelBlunt Edge3/8-16 x 1"40.40.4510.250.71306,00010.05

£100.44Add to basketLoading Done

13226£87.93Tool SteelKnife Edge1/2-13 x 1 1/4"20.60.641.50.3750.71108.312,0001.50.075

£87.93Add to basketLoading Done

13227£87.93Tool SteelBlunt Edge1/2-13 x 1 1/4"20.60.641.50.3750.71108.312,0001.50.075

£87.93Add to basketLoading Done

13252£90.31Tool SteelBlunt EdgeM2.58

£90.31Add to basketLoading Done

13261£97.72Tool SteelKnife EdgeM48

£97.72Add to basketLoading Done

13262£97.72Tool SteelBlunt EdgeM48

£97.72Add to basketLoading Done

13263£91.84BrassBlunt EdgeM48

£91.84Add to basketLoading Done

13271£94.82Tool SteelKnife EdgeM66

£94.82Add to basketLoading Done

13272£94.82Tool SteelBlunt EdgeM66

£94.82Add to basketLoading Done

13273£94.82BrassBlunt EdgeM66

£94.82Add to basketLoading Done

13274£107.76Tool SteelKnife EdgeM10 x 25mm4

£107.76Add to basketLoading Done

13275£102.57Tool SteelBlunt EdgeM10 x 25mm4

£102.57Add to basketLoading Done

13276£84.24Tool SteelKnife EdgeM12 x 30mm2

£84.24Add to basketLoading Done

13277£89.63Tool SteelBlunt EdgeM12 x 30mm2

£89.63Add to basketLoading Done
