Spherical Flange Nuts

Jergens, Inc

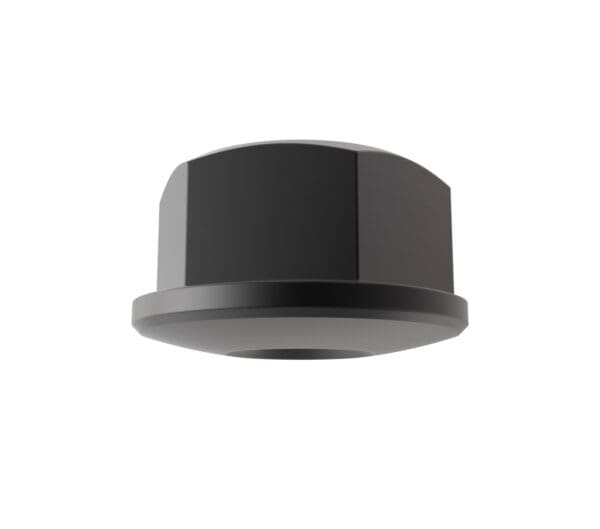

Jergens Spherical Flange Nuts have a convex bottom that nests into the concave bottom section of a washer for full floating action.
Features, Benefits, & Product Specifications:
  • Material: Low Carbon Steel
  • Finish: Black Oxide
  • Heat Treat: Case Hardened
  • Thread: 2B-UNC (Inch); 6h (Metric)

Part Number
A
B (In)
C (In)
D (In)
E (In)
F (In)
Weight 10 Pieces (lbs)
Price
39701
10-24
3/8
1/2
3/32
1/4
3/4
0.1
£6.00

£6.00Done

39702
1/4-20
1/2
5/8
3/32
1/4
1
0.12
£11.65

£11.65Done

39703
5/16-18
9/16
3/4
1/8
9/32
1
0.21
£7.44

£7.44Done

39704
3/8-16
11/16
7/8
1/4
13/32
1 1/2
0.5
£3.29

£3.29Done

39705
1/2-13
7/8
1 1/8
5/16
1/2
2
1
£3.56

£3.56Done

39706
5/8-11
1 1/16
1 3/8
23/64
5/8
2 1/4
1.82
£5.18

£5.18Done

39707
3/4-10
1 1/4
1 5/8
27/64
3/4
2 1/2
3.1
£7.53

£7.53Done

39708
7/8-9
1 7/16
1 3/4
3/8
7/8
2 1/2
4.35
£11.78

£11.78Done

39709
1-8
1 5/8
2
29/64
1
3 1/2
5.9
£10.09

£10.09Done

39711
1 1/4-7
1 13/16
2 1/4
5/16
1 1/16
4
7.2
£42.00

£42.00Done
