Spherical Flanged Assemblies

Jergens, Inc

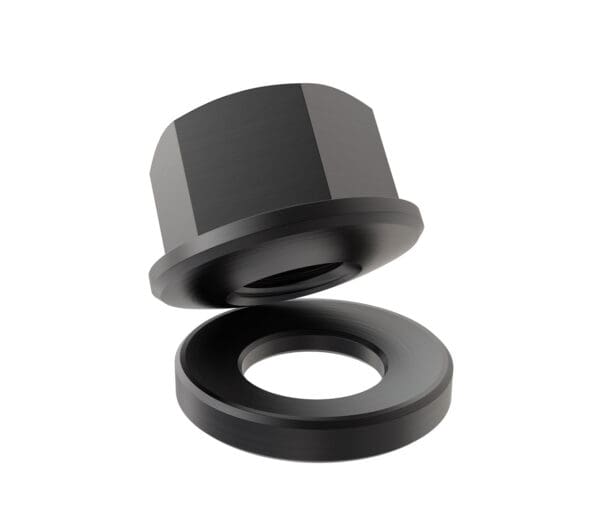

Jergens Spherical Flanged Assemblies have the same advantages as our Spherical Washers but with the addition of a nut to replace the top section of the washers. The convex bottom of nut nests into the concave bottom section for full floating action.

Features, Benefits, & Product Specifications:
  • Material: Low Carbon Steel
  • Finish: Black Oxide
  • Heat Treat: Case Hardened

Part Number
A
Nut B Part Number
Washer C Part Number
Weight 10 Pcs (lbs)
Price
10-24
39701
41301
0.12
£6.80
1/4-20
39702
41302
0.16
£8.10
5/16-18
39703
41303
0.31
£8.33
3/8-16
39704
41304
0.65
£5.10
1/2-13
39705
41305
1.45
£5.52
5/8-11
39706
41306
2.44
£7.76
3/4-10
39707
41307
4.1
£11.14
7/8-9
39708
41308
6
£17.37
1-8
39709
41309
8.1
£13.50
1 1/4-7
39711
41311
13.4
£50.25
