Flange Nut Clamp Assemblies

Jergens, Inc

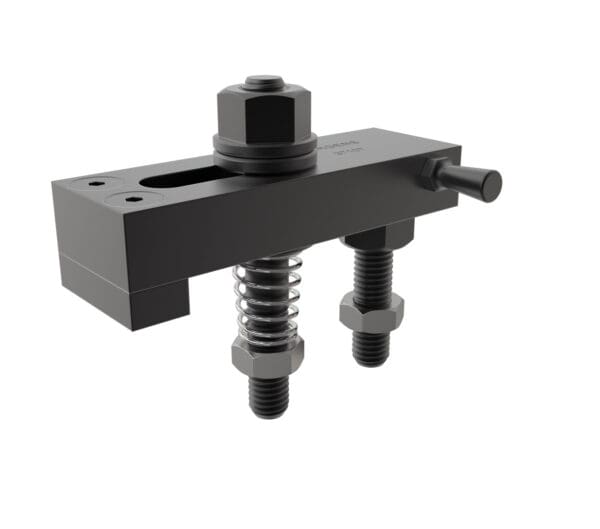

Jergens Flange Nut Clamp Assemblies provide heavy-duty clamping of plain surfaces with a spherical flange nut and a spherical washer for angular flexibility. A long, true-milled slot allows greater clearance for placing and removing work. Each clamp assembly features a spring-loaded stud for quick release. Plastic and Brass Strap Pads are available for protecting the workpiece (see Related Products below).

Note(s):
  • G dimension represents an optimum dimension.
  • Part No. 12701 does not include a finger handle (see Related Products below).

Part Number
Thread Size
Weight (lbs)
A (In)
B (In)
C (In)
D (In)
E (In)
F (In)
G (In)
Price
12701
1/4-20
0.27
3/4
5/8
1/2
2
5/8
1 5/8
7/8
£34.42

£34.42Done

12703
3/8-16
1.12
1 1/2
1 1/4
7/8
3 1/2
1 1/8
2 15/16
1 7/16
£42.25

£42.25Done

12705
3/8-16
1.38
1 1/2
1 1/4
7/8
4 1/2
1 5/8
2 15/16
1 15/16
£44.80

£44.80Done

12707
1/2-13
2.12
1 1/8
1 1/2
1 1/8
4 1/2
1 1/4
3
2 1/8
£49.99

£49.99Done

12710
1/2-13
2.62
1 1/8
1 1/2
1 1/8
6
2
3
2 7/8
£46.19

£46.19Done

12711
5/8-11
3.5
2 5/8
1 3/4
1 3/8
5
1 1/2
5 1/16
2 1/8
£64.05

£64.05Done

12713
5/8-11
4.12
2 5/8
1 3/4
1 3/8
7
2 1/2
5 1/16
3 1/8
£67.10

£67.10Done

12714
3/4-10
4.12
1 3/4
1 3/4
1 1/2
5
1 1/2
4 3/8
2 1/8
£67.48

£67.48Done

12716
3/4-10
4.87
1 3/4
1 3/4
1 1/2
7
2 1/2
4 3/8
3 1/8
£72.54

£72.54Done
