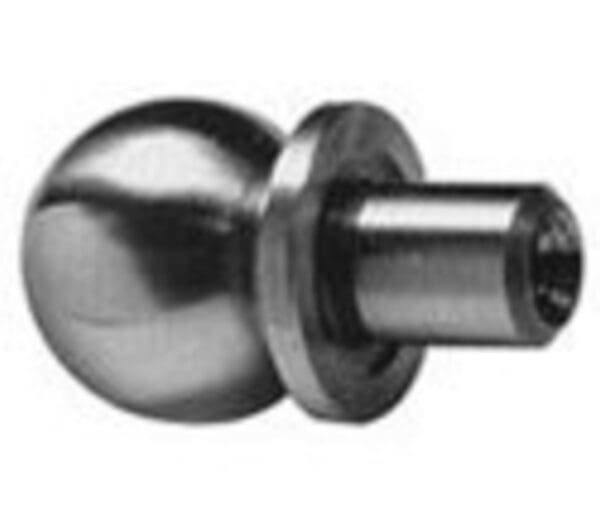

Tapped Construction Balls
Jergens Tapped Construction Balls are used as reference points for inspection applications in conjunction with Coordinate Measuring Machines to accurately measure the workpiece.
Features, Benefits, & Product Specifications:
- Material: 8620 Steel
- Heat Treat: Hardened RC 58-62
- Close Tolerances: 0.0002″ (0.005mm) TIR
- Heavy-duty and resists lateral forces
- One-piece construction
Dimensions
| Part Number | Price | D (In) | F (In) | Weight 10 Pieces (lbs) | C +/-0.0002 (In) | A +/- 0.0002 (In) | B +0.0000/-0.0004 (In) | Diameter E (In) | |
|---|---|---|---|---|---|---|---|---|---|
| 29051 | £52.71 | 0.625 | 6-32 x 1/4 | 0.3 | 0.3125 | 0.5 | 0.25 | 0.49 | £52.71Add to basket |
| 29052 | £36.66 | 0.625 | Not Tapped | 0.3 | 0.3125 | 0.5 | 0.25 | 0.49 | £36.66Add to basket |
| 29090 | £98.40 | £98.40Add to basket | |||||||
| 29091 | £53.08 | £53.08Add to basket | |||||||
| 29092 | £39.07 | £39.07Add to basket |
